Description:

With the Max Series, there are no compromises. These compact tractors offer ultimate versatility, combining the maneuverability and agility of smaller vehicles with the durability and lift capacity of a larger machine. Work in the tight areas other compact tractors can’t, while possessing plenty of power for large estate and municipal projects.

Specifications:

• Tractor Model: Max 26 XLT HST
• Engine Type: Four-stroke, Naturally Aspirated, Indirect Injection, Water Cooled Diesel Engine
• Engine HP (kW) @ RPM: 25.9 (19.3) @ 2500
• Displacement (in³ / cc): 80.4 (1318)
• Number of Cylinders: 3
• Fuel Tank (Gal / L): 6.1 (23)
• Bore & Stroke (in): 3.1 x 3.6
• Transmission Type: HST – 2 ranges
• Number of Speeds: Infinite
• Clutch: Dry-Single
• Max Speed (mph): 9.3
• Brakes: Wet Disc
• PTO Type: Live
• Rear PTO RPM: 540 @ 2376
• Mid PTO RPM: 2000 (Opt.) @ 2526
• PTO HP (kW): 20.2 (15)
• Hydraulics Type: Open Center
• Maximum Total Flow (GPM / L/min): 8.5 (32.2)
• Total Pump Output, Main (GPM): 5.8
• Total Pump Output, Steering (GPM): 2.7

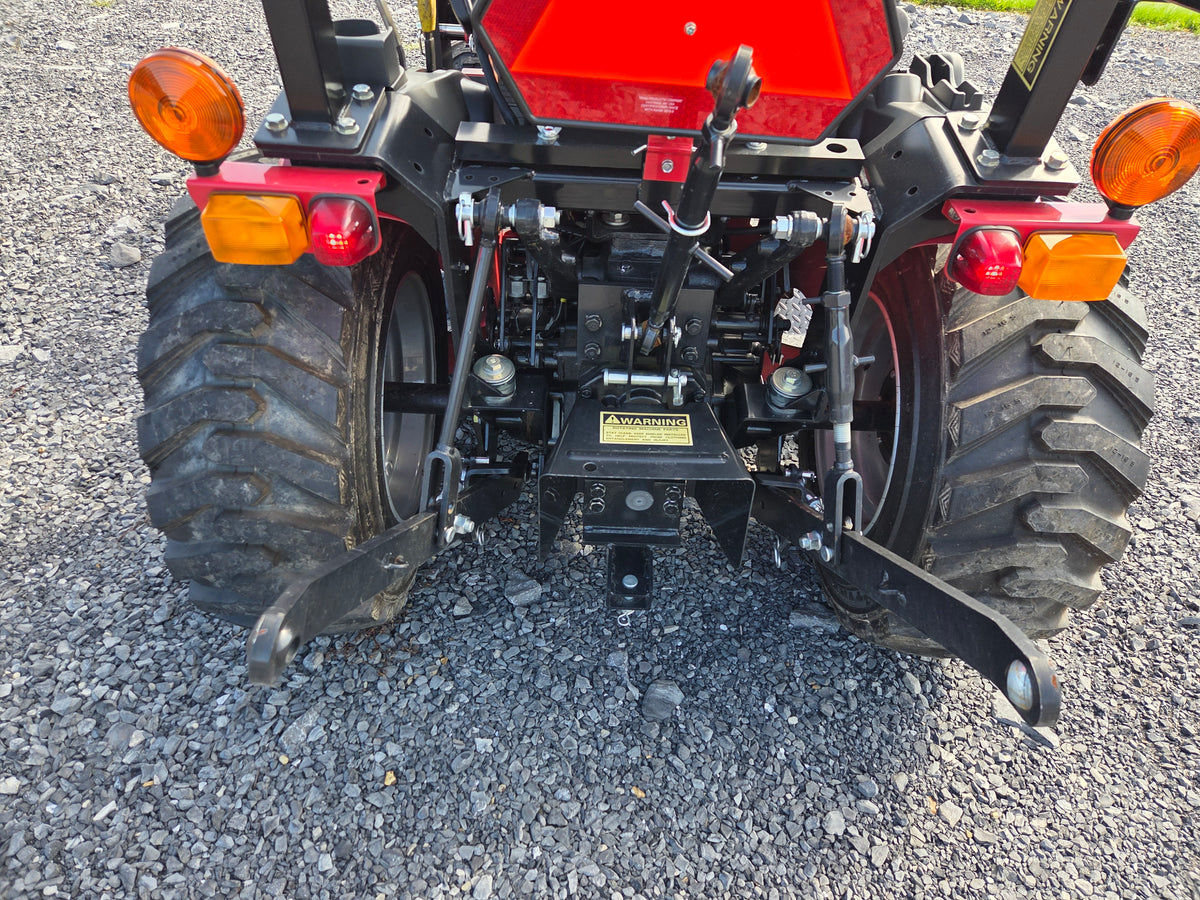

• 3-Point Hitch: CAT I
• 3-Point Hitch Lift Capacity @ 24" (lb / kg): 2315 (1052)
• Battery: 12 V, 450 CCA
• Alternator: 12 V, 50 A
• Overall Length (in / mm): 110 (2795)
• Wheelbase (in / mm): 63.2 (1605)
• Turning Radius (ft / m): 7.2 (2.2)
• Overall Width (in / mm): 54.3 (1380)
• Overall Height (in / mm): 84.3 (2140)
• Minimum Ground Clearance (in / mm): 11.4 (290)
• Weight (lb / kg): 1973 (895)
• Tires (AG Front/Rear): 7 – 12 / 9.5 – 16
• Tires (IND Front/Rear): 23 x 8.50-12 / 12-16.5
• Tires (TURF Front/Rear): 23 x 8.5-12 / 33 x 12.5-15
• Loader Model Number: mXLT-26L
• Max Lift Height (in): 85
• Loader Lift Capacity (lb / kg): 1520 (691)
• Digging Depth (in): 4.5
